FL - 2 100A 75MV NATIONAL STANDARD DC DIVERTER CURRENT TRANSFORMER (GOLDEN)
RM 129.96
Main Features:

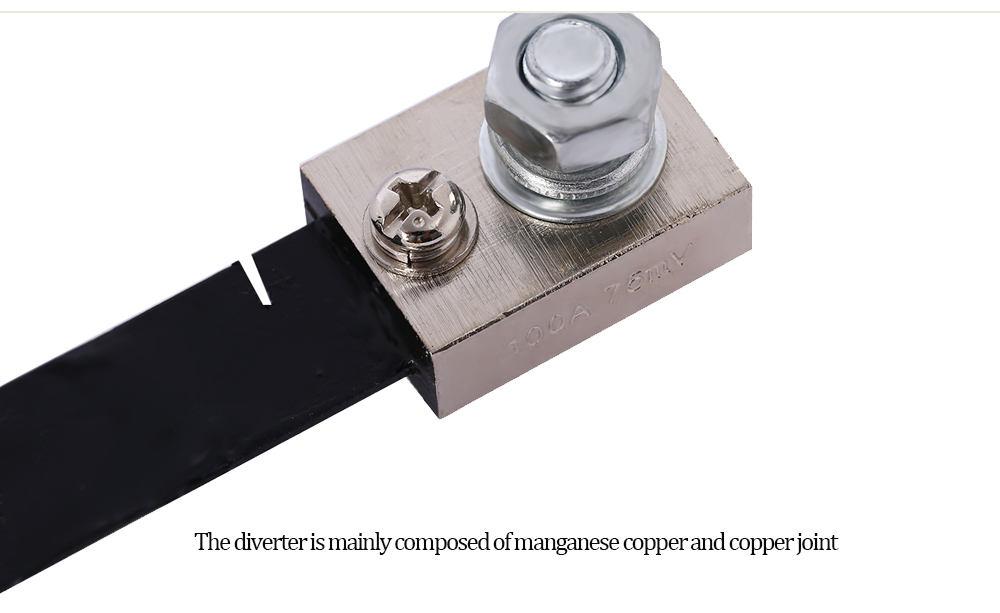

The diverter is mainly composed of manganese copper and copper joint. At the ends of the diverter, there are two sets of terminals. One group of potential end connected with the power line, another group is for the connection of potential end and measuring instrument
Winding form: monolayer
Environment condition: -40 Deg.C to +60 Deg.C relative temperature: 95 percent and less ( 35 Deg.C )

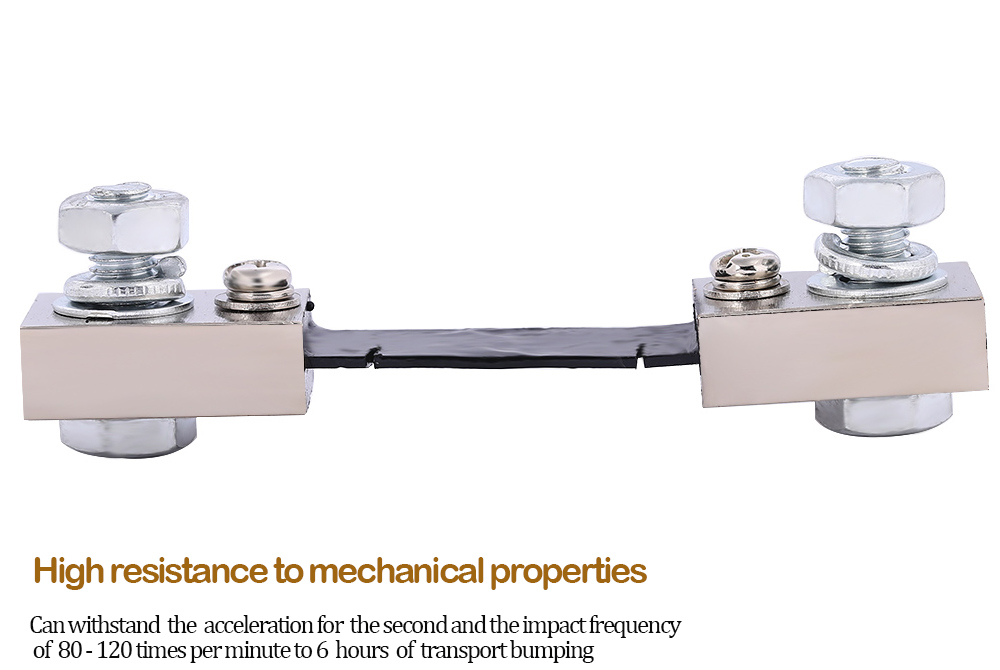

Resistance to mechanical properties: can withstand the acceleration for the second and the impact frequency of 80 - 120 times per minute to 6 hours of transport bumping
Overload performance: current 120 percent, 2 hours
Voltage drop: 50mV 75mV 100mV
Heating load: after temperature change tends to be stable, not exceeding 80 Deg.C when the rated current is below 50A, and not exceeding 120 Deg.C when the rated current is above 50A
The diverter is mainly composed of manganese copper and copper joint. At the ends of the diverter, there are two sets of terminals. One group of potential end connected with the power line, another group is for the connection of potential end and measuring instrument
Winding form: monolayer
Environment condition: -40 Deg.C to +60 Deg.C relative temperature: 95 percent and less ( 35 Deg.C )
Resistance to mechanical properties: can withstand the acceleration for the second and the impact frequency of 80 - 120 times per minute to 6 hours of transport bumping
Overload performance: current 120 percent, 2 hours
Voltage drop: 50mV 75mV 100mV
Heating load: after temperature change tends to be stable, not exceeding 80 Deg.C when the rated current is below 50A, and not exceeding 120 Deg.C when the rated current is above 50A
Package weight: 0.206 kg
Product Size(L x W x H): 10.60 x 2.20 x 2.80 cm / 4.17 x 0.87 x 1.1 inches
Package Size(L x W x H): 11.60 x 3.20 x 3.00 cm / 4.57 x 1.26 x 1.18 inches
Product Size(L x W x H): 10.60 x 2.20 x 2.80 cm / 4.17 x 0.87 x 1.1 inches
Package Size(L x W x H): 11.60 x 3.20 x 3.00 cm / 4.57 x 1.26 x 1.18 inches
Package Contents: 1 x National Standard DC Diverter
